C++ Module: downlinkHandling

Warning

[BETA] downlinkHandling is a beta module in an initial public release. This module might be subject to changes in future releases.

Executive Summary

This document describes how the downlinkHandling module maps radio link quality into realistic data transfer outcomes.

At each simulation step, the module:

• reads link quality from C++ Module: linkBudget

• converts CNR into BER and packet error rate

• applies retry-limited ARQ reliability

• removes data from onboard storage at the resulting effective rate when storage routing is safely actionable

• publishes detailed diagnostics for analysis and fault studies

The module is designed to sit between RF-link modeling (C++ Module: simpleAntenna, C++ Module: linkBudget) and onboard data-buffer dynamics (DataStorageStatusMsgPayload, DataNodeUsageMsgPayload).

System Role and Data Flow

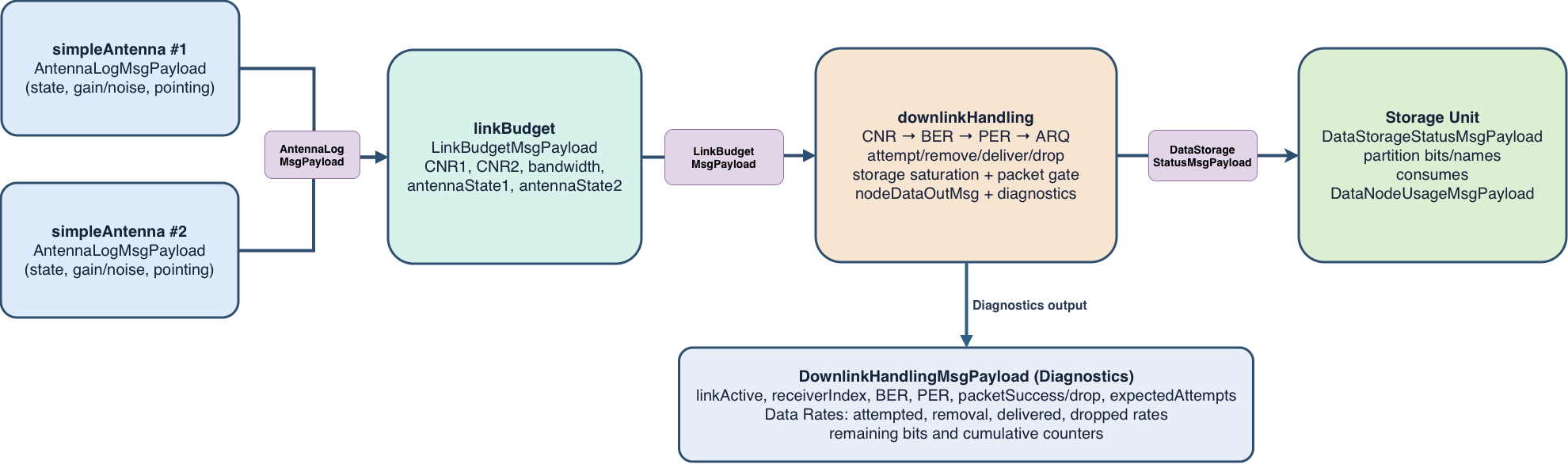

Figure 1: Integration flow and message-level role of downlinkHandling.

Message Connection Descriptions

The following table lists all module input and output messages. The message connection is set by the user from Python.

Module I/O Messages

Msg Variable Name	Msg Type	Description
linkBudgetInMsg	LinkBudgetMsgPayload	Link-quality input from C++ Module: linkBudget (receiver states, CNR1, CNR2, overlap bandwidth). Required for non-zero downlink.
storageUnitInMsgs	DataStorageStatusMsgPayload	Storage state input (partition names, partition bits, total storage level). Required for actual data removal; actual removal is currently limited to a single linked storage unit. Connected via addStorageUnitToDownlink.
nodeDataOutMsg	DataNodeUsageMsgPayload	Data-node output inherited from DataNodeBase. Negative baud rate removes bits from storage.
downlinkOutMsg	DownlinkHandlingMsgPayload	Diagnostics output with link metrics, reliability metrics, rates, and cumulative counters.

Detailed Module Description

The module extends DataNodeBase and runs once per simulation step.

The per-step sequence is:

1. Read LinkBudgetMsgPayload and all connected storage status messages.

2. Select one candidate storage target (largest finite partition across all connected storage status messages; use storageLevel only when a message has no partition vector).

3. Select receiver path (forced receiver index or auto mode).

4. Convert selected CNR and overlap bandwidth into \(C/N_0\).

5. Convert \(C/N_0\) and requested bit rate into \(E_b/N_0\).

6. Compute BER and PER.

7. Apply retry-limited ARQ model to obtain success/drop probability and expected attempts.

8. Compute attempted, removed, delivered, and dropped rates.

9. Apply packet gating and storage saturation.

10. Write nodeDataOutMsg and downlinkOutMsg.

The candidate-selection logic can inspect multiple storage status messages, but actual storage removal is intentionally conservative: nodeDataOutMsg carries only dataName and baudRate, so it cannot safely target one specific storage unit when multiple storage units are linked. In that case, downlinkHandling reports the selected candidate in diagnostics but forces removal to zero for that step to avoid silent cross-unit corruption.

Configurable Parameters

Module Parameters

Parameter	Default	Unit	Description
bitRateRequest	0.0	bit/s	Requested raw channel bit rate \(R_b\). If \(R_b \le 0\), throughput is zero.
packetSizeBits	256	bit	Packet length \(L\) for BER-to-PER conversion.
maxRetransmissions	10		Retry cap used in the ARQ model. Current implementation enforces \(N \ge 1\) and treats \(N\) as maximum transmission attempts.
receiverAntenna	0		Receiver selection: 0=auto, 1=use receiver path 1, 2=use receiver path 2.
removalPolicy	REMOVE_ATTEMPTED (0)		Storage removal mode: REMOVE_ATTEMPTED removes delivered+drop-limited bits, REMOVE_DELIVERED_ONLY removes only successfully delivered bits.
requireFullPacket	True		If True, downlink waits until selected storage has at least one full packet.

Configuration Interface and Validation

The module exposes validated setters in C++/Python:

• setBitRateRequest(bitRateRequest) with \(bitRateRequest \ge 0\)

• setPacketSizeBits(packetSizeBits) with \(packetSizeBits > 0\)

• setMaxRetransmissions(maxRetransmissions) with \(maxRetransmissions \ge 1\)

• setReceiverAntenna(receiverAntenna) with receiverAntenna in {0,1,2}

• setRemovalPolicy(removalPolicy) with removalPolicy in {0,1}

• setRequireFullPacket(requireFullPacket)

If a setter receives an invalid value, the module rejects it and keeps the last valid value. Use the explicit setter/getter methods in Python to keep the interface consistent with the C++ API.

Receiver Selection and CNR1/CNR2 Usage

The module uses receiver-specific fields from LinkBudgetMsgPayload:

• CNR1 corresponds to receiver path 1

• CNR2 corresponds to receiver path 2

These are not duplicates. They represent two possible receiving directions/modes in the bidirectional link-budget result.

Selection behavior:

• receiverAntenna = 1: use path 1 (only if antenna state 1 is RX or RXTX)

• receiverAntenna = 2: use path 2 (only if antenna state 2 is RX or RXTX)

• receiverAntenna = 0: auto-select valid RX path with higher CNR

If no valid receiver path exists, the link is treated as inactive for that step.

Reliability and Throughput Model

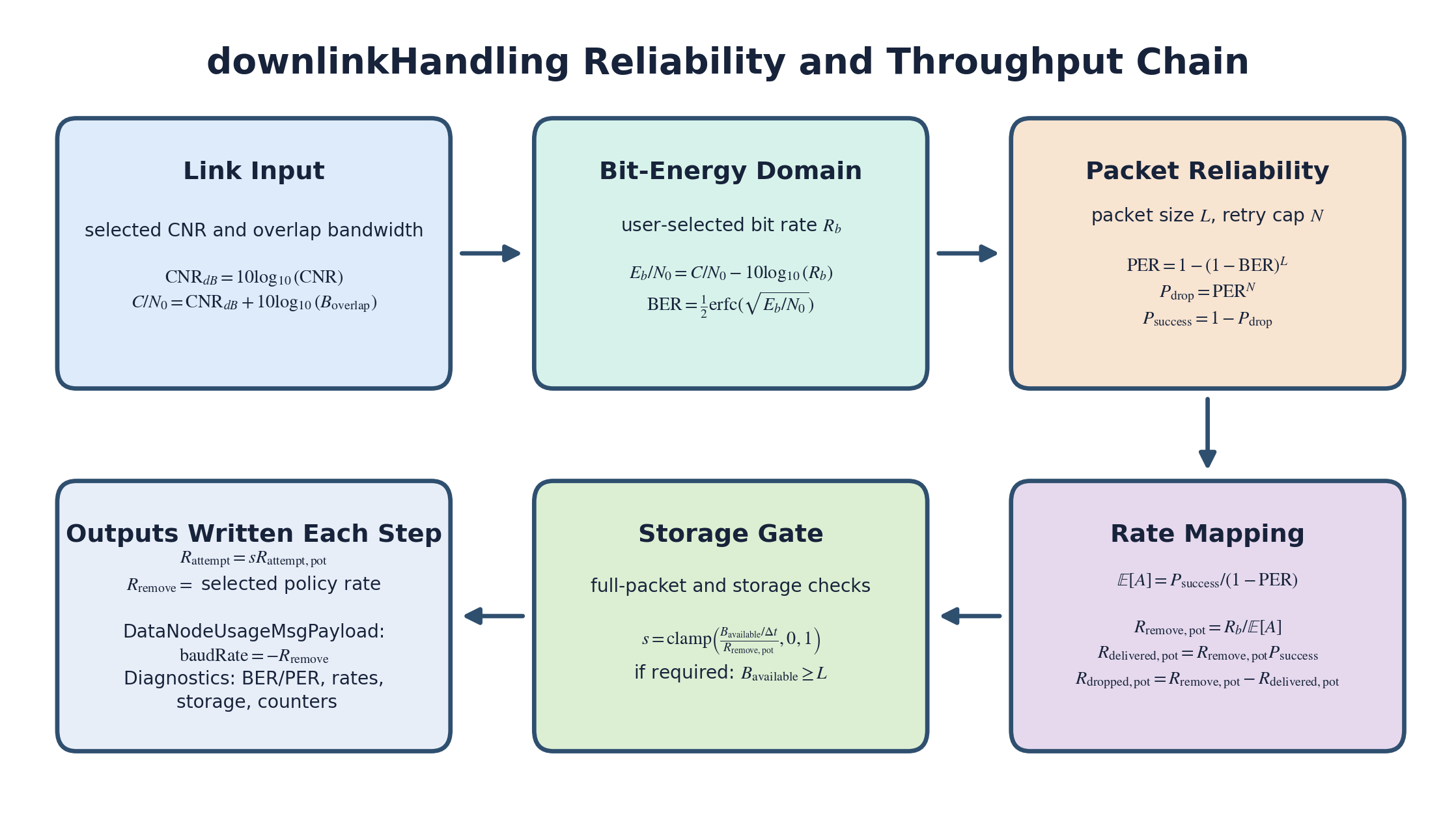

Figure 2: Computation chain from RF link quality to storage removal and delivered data rates.

For valid inputs (linked/written link budget, selected CNR \(>0\), overlap bandwidth \(>0\), \(R_b>0\), packet size \(>0\)):

\[\mathrm{CNR}_{dB} = 10\log_{10}(\mathrm{CNR})\]

\[\frac{C}{N_0}\,[dBHz] = \mathrm{CNR}_{dB} + 10\log_{10}(B_{\mathrm{overlap}})\]

\[\frac{E_b}{N_0}\,[dB] = \frac{C}{N_0}[dBHz] - 10\log_{10}(R_b)\]

Current BER model (BPSK over AWGN):

\[\mathrm{BER} = Q\left(\sqrt{2E_b/N_0}\right) = \frac{1}{2}\,\mathrm{erfc}\left(\sqrt{E_b/N_0}\right)\]

Packet error model (independent bit errors, any bit error fails packet):

\[\mathrm{PER} = 1 - (1-\mathrm{BER})^L\]

Let \(N=\max(1,\texttt{maxRetransmissions})\). Retry-limited ARQ model:

\[P_{\mathrm{drop}} = \mathrm{PER}^{N}\]

\[P_{\mathrm{success}} = 1 - P_{\mathrm{drop}}\]

Expected attempts per source packet (truncated geometric expectation):

\[\begin{split}\mathbb{E}[A] = \begin{cases} \dfrac{P_{\mathrm{success}}}{1-\mathrm{PER}}, & \mathrm{PER}<1 \\ N, & \mathrm{PER}=1 \end{cases}\end{split}\]

Unscaled rates:

\[R_{\mathrm{attempt,pot}} = R_b\]

\[R_{\mathrm{remove,pot}} = \frac{R_{\mathrm{attempt,pot}}}{\mathbb{E}[A]}\]

\[R_{\mathrm{delivered,pot}} = R_{\mathrm{remove,pot}}\,P_{\mathrm{success}}\]

\[R_{\mathrm{dropped,pot}} = R_{\mathrm{remove,pot}} - R_{\mathrm{delivered,pot}}\]

Storage and packet gating scale factor:

\[s = \mathrm{clamp}\!\left( \frac{B_{\mathrm{available}}/\Delta t}{R_{\mathrm{remove,pot}}}, 0, 1\right)\]

with additional logic:

• if requireFullPacket is True, enforce \(B_{\mathrm{available}} \ge L\)

• if \(\Delta t \le 0\) or \(R_{\mathrm{remove,pot}} \le 0\), set \(s=0\)

Final rates:

\[R_{\mathrm{attempt}} = s\,R_{\mathrm{attempt,pot}}, \quad R_{\mathrm{remove,modeled}} = s\,R_{\mathrm{remove,pot}}, \quad R_{\mathrm{delivered}} = s\,R_{\mathrm{delivered,pot}}, \quad R_{\mathrm{dropped}} = s\,R_{\mathrm{dropped,pot}}\]

Actual storage removal follows removalPolicy:

\[\begin{split}R_{\mathrm{remove}} = \begin{cases} R_{\mathrm{remove,modeled}}, & \text{REMOVE\_ATTEMPTED} \\ R_{\mathrm{delivered}}, & \text{REMOVE\_DELIVERED\_ONLY} \end{cases}\end{split}\]

The value written to storage through nodeDataOutMsg is then:

\[\texttt{nodeDataOutMsg.baudRate} = -R_{\mathrm{remove}}\]

Output Diagnostics

The custom output DownlinkHandlingMsgPayload reports:

• link/selection state (linkActive, receiverIndex, antenna names, removalPolicy)

• physical-layer quality terms (CNR, \(C/N_0\), \(E_b/N_0\), BER, PER)

• ARQ reliability terms (success/drop probabilities, expected attempts)

• rate terms (attempted, removed, delivered, dropped)

• storage terms (available and estimated remaining bits)

• cumulative counters (attempted/removed/delivered/dropped bits)

Integration with simpleAntenna and linkBudget

Typical chain:

1. C++ Module: simpleAntenna modules compute antenna logs.

2. C++ Module: linkBudget computes overlap bandwidth and CNR per receiver path.

3. C++ Module: downlinkHandling converts link quality to effective data transfer and storage removal.

4. Storage modules consume nodeDataOutMsg and reduce onboard buffered data.

Warning

Also important integration note: Do not run spaceToGroundTransmitter and downlinkHandling as competing downlink removers on the same storage partitions. Pick one downlink path.

This separation is useful for fault modeling: upstream RF degradation (pointing, frequency mismatch, atmospheric attenuation, receive-state changes) naturally propagates into BER/PER and delivered data.

Assumptions and Current Limits

• BER model is analytic BPSK/AWGN.

• Bit errors are independent.

• Any bit error fails the packet.

• ARQ is expectation-based, not packet-by-packet Monte Carlo.

• No explicit ACK latency, coding gain, framing overhead, or adaptive coding/modulation.

• REMOVE_DELIVERED_ONLY preserves dropped/undelivered bits onboard, but the module still uses an expected-rate ARQ model instead of explicit packet ACK/NACK timelines.

• Storage target selection prioritizes per-partition values. storageLevel is only used as fallback for messages that do not provide storedData entries.

• nodeDataOutMsg identifies storage by dataName only and cannot address a specific storage unit. Accordingly, downlinkHandling forces removal to zero whenever more than one storage unit is linked through addStorageUnitToDownlink. Multi-storage status inspection is still supported for diagnostics and candidate selection, but actual removal currently requires a single linked storage unit.

• If a selected storage status message does not provide an explicit partition name, downlinkHandling also forces removal to zero for that step and emits an empty nodeDataOutMsg.dataName rather than emitting an aggregate negative rate that downstream storage cannot route safely.

Unit Test Coverage

Test file:

src/simulation/communication/downlinkHandling/_UnitTest/test_downlinkHandling.py

The tests verify:

• equation parity versus a Python-equivalent BER/PER/ARQ model

• zero-flow behavior for invalid link inputs

• retry-cap effects on drop probability and removal/delivery behavior

• removal-policy behavior (REMOVE_ATTEMPTED vs REMOVE_DELIVERED_ONLY)

• storage-limited rate capping and drain behavior

• automatic receiver selection from antenna RX states and CNR values

• duplicate-storage input rejection

• storage-target selection across multiple storage status messages

• conservative removal blocking when more than one storage unit is linked

• conservative removal blocking when a selected partition has no explicit name

• ambiguous duplicate partition-name behavior across multiple storage status messages

User Guide

Basic setup example:

from Basilisk.simulation import downlinkHandling, simpleStorageUnit

dlh = downlinkHandling.DownlinkHandling()
dlh.setBitRateRequest(1.0e5)      # [bit/s]
dlh.setPacketSizeBits(1024)       # [bit]
dlh.setMaxRetransmissions(8)      # [-]
dlh.setReceiverAntenna(0)         # [-] auto-select valid RX path with highest CNR
dlh.setRemovalPolicy(0)           # [-] 0=REMOVE_ATTEMPTED, 1=REMOVE_DELIVERED_ONLY
dlh.setRequireFullPacket(True)    # [-]

storage = simpleStorageUnit.SimpleStorageUnit()
storage.storageCapacity = int(8e9)
storage.addDataNodeToModel(dlh.nodeDataOutMsg)
dlh.addStorageUnitToDownlink(storage.storageUnitDataOutMsg)

# linkBudgetOutPayload is produced by the linkBudget module:
# dlh.linkBudgetInMsg.subscribeTo(linkBudgetModule.linkBudgetOutPayload)

---

class DownlinkHandling : public DataNodeBase

#include <downlinkHandling.h>

Downlink data-handling model that maps link quality to reliable throughput.

Public Types

enum class RemovalPolicy : uint32_t

Storage removal policy selector.

REMOVE_ATTEMPTED removes both delivered and drop-limited data from storage. REMOVE_DELIVERED_ONLY removes only successfully delivered data.

Values:

enumerator REMOVE_ATTEMPTED

[-] Remove delivered + drop-limited bits (current default behavior)

enumerator REMOVE_DELIVERED_ONLY

[-] Remove only successfully delivered bits

Public Functions

DownlinkHandling()

Construct the downlink handling module with default parameters.

Constructor

~DownlinkHandling() = default

Default destructor.

bool addStorageUnitToDownlink(Message<DataStorageStatusMsgPayload> *tmpStorageUnitMsg)

Register a storage-status input message.

Duplicate and null pointers are rejected.

Add a storage-status message to the module input list

Parameters:

tmpStorageUnitMsg – Pointer to a storage status output message

Returns:

true if the message was added, false otherwise

bool setBitRateRequest(double bitRateRequest)

Set requested raw channel bit rate.

Set requested raw bit rate [bit/s]

Parameters:

bitRateRequest – Requested bit rate [bit/s], must be finite and :math:\ge 0

Returns:

true if accepted, false otherwise

bool setPacketSizeBits(double packetSizeBits)

Set packet size used by BER-to-PER conversion.

Set packet size used for BER-to-PER conversion [bit]

Parameters:

packetSizeBits – Packet size [bit], must be finite and :math:> 0

Returns:

true if accepted, false otherwise

bool setMaxRetransmissions(int64_t maxRetransmissions)

Set retry cap used by the ARQ model.

Set retry-cap used by the ARQ expectation model [-]

Parameters:

maxRetransmissions – Maximum packet transmission attempts, must be :math:\ge 1

Returns:

true if accepted, false otherwise

bool setReceiverAntenna(int64_t receiverAntenna)

Select receiver path mode.

Set receiver-selection mode: 0=auto, 1=path1, 2=path2 [-]

Parameters:

receiverAntenna – 0 = auto, 1 = force path 1, 2 = force path 2

Returns:

true if accepted, false otherwise

bool setRemovalPolicy(int64_t removalPolicy)

Set storage-removal policy.

Set storage-removal policy: 0=remove attempted, 1=remove delivered only

Parameters:

removalPolicy – 0 = remove attempted, 1 = remove delivered only

Returns:

true if accepted, false otherwise

void setRequireFullPacket(bool requireFullPacket)

Set packet gating behavior.

Set packet-gating behavior flag

Parameters:

requireFullPacket – If true, require at least one full packet before downlink

inline double getBitRateRequest() const

Get requested raw channel bit rate.

Returns:

Requested bit rate [bit/s]

inline double getPacketSizeBits() const

Get configured packet size.

Returns:

Packet size [bit]

inline uint64_t getMaxRetransmissions() const

Get retry cap used by ARQ model.

Returns:

Maximum transmission attempts per packet [-]

inline int64_t getReceiverAntenna() const

Get receiver selection mode.

Returns:

0 (auto), 1 (path 1), or 2 (path 2)

inline uint32_t getRemovalPolicy() const

Get storage-removal policy.

Returns:

0 (remove attempted) or 1 (remove delivered only)

inline bool getRequireFullPacket() const

Get packet gating mode.

Returns:

true if one full packet is required before downlink

inline uint32_t getCurrentLinkActive() const

Return 1 if link-quality inputs were valid on the last update, else 0.

inline uint32_t getCurrentReceiverIndex() const

Return selected receiver index on the last update (0=no receiver, 1/2=receiver path).

inline double getCurrentTimeStep() const

Return last module time step [s].

inline double getCurrentBer() const

Return last computed bit-error-rate (BER) [-].

inline double getCurrentPer() const

Return last computed packet-error-rate (PER) [-].

inline double getCurrentPacketDropProb() const

Return last packet drop probability within retry cap [-].

inline double getCurrentExpectedAttemptsPerPacket() const

Return last expected attempts per packet under retry cap [-].

inline double getCurrentStorageRemovalRate() const

Return last data-removal rate from storage [bit/s].

inline double getCurrentDeliveredDataRate() const

Return last successfully delivered data rate [bit/s].

inline double getCurrentDroppedDataRate() const

Return last dropped data rate after retries [bit/s].

inline double getCurrentEstimatedRemainingDataBits() const

Return estimated remaining bits in selected data partition [bit].

Public Members

ReadFunctor<LinkBudgetMsgPayload> linkBudgetInMsg

Link-budget input message.

Message<DownlinkHandlingMsgPayload> downlinkOutMsg

Downlink performance output message.

BSKLogger bskLogger

BSK logging interface.

Private Functions

bool customReadMessages() override

Read custom input messages

void customWriteMessages(uint64_t CurrentClock) override

Write custom output messages

void customReset(uint64_t CurrentClock) override

Module reset hook

void evaluateDataModel(DataNodeUsageMsgPayload *dataUsageMsg, double currentTime) override

Core data-model evaluation

StorageSelection selectStorageSelection() const

Select storage target with the largest finite data across linked units.

The function prioritizes per-partition values when available and only falls back to aggregate storageLevel for messages that provide no partition vector.

bool isStorageRemovalRouteSafe(const StorageSelection &selection) const

Return true only when the selected storage route can be safely acted on via DataNodeUsageMsgPayload

bool setDataNameFromStorageSelection(const StorageSelection &selection, char *buffer, std::size_t bufferSize)

Set data name based on selected storage unit and partition

void selectReceiver(double *cnrLinear, uint32_t *receiverIndex) const

Select receiver CNR from link budget payload

bool validateConfiguration() const

Validate module configuration values

bool isFinite(double value) const

Return true if value is finite

bool isFiniteNonNegative(double value) const

Return true if value is finite and >= 0

bool isFinitePositive(double value) const

Return true if value is finite and > 0

bool isReceiverState(uint32_t state) const

Check if antenna state allows receiving

double computeBerFromEbN0dB(double ebN0_dB) const

Compute BER for BPSK over AWGN from Eb/N0 [dB]

double clampProbability(double value) const

Clamp probabilities to [0, 1]

double sanitizeNonNegative(double value) const

Clamp all invalid/non-physical nonnegative outputs to 0

Private Members

double bitRateRequest

[bit/s] Raw requested channel bit-rate

double packetSizeBits

[bit] Packet size for BER-to-PER conversion

uint64_t maxRetransmissions

[-] Maximum transmission attempts per packet in the ARQ model

int64_t receiverAntenna

[-] 0=auto, 1=receiver antenna 1, 2=receiver antenna 2

RemovalPolicy removalPolicy

[-] Storage-removal mode for downlinked data

bool requireFullPacket

[-] If true, wait for >=1 full packet before downlinking

std::vector<Message<DataStorageStatusMsgPayload>*> storageUnitMsgPtrs

Storage-msg pointer list for duplicate checks.

std::vector<ReadFunctor<DataStorageStatusMsgPayload>> storageUnitInMsgs

Storage status subscribers.

std::vector<DataStorageStatusMsgPayload> storageUnitMsgsBuffer

Local storage status buffers.

LinkBudgetMsgPayload linkBudgetBuffer

Local copy of link-budget message.

bool linkBudgetValid

True when linkBudget message is linked and written.

DownlinkHandlingMsgPayload downlinkOutBuffer

Local copy of downlink output message.

double previousTime

[s] previous simulation time

double currentTimeStep

[s] current integration step

double availableDataBits

[bit] selected storage data available

double cumulativeAttemptedBits

[bit] attempted channel bits (includes retransmissions)

double cumulativeRemovedBits

[bit] bits removed from storage

double cumulativeDeliveredBits

[bit] successfully delivered bits

double cumulativeDroppedBits

[bit] dropped bits after retransmission limit

std::string lastBlockedStorageRemovalReason

[-] last routing warning reason emitted for blocked removal

struct StorageSelection

Public Members

int64_t storageUnitIndex

[-] storage-unit index in storageUnitMsgsBuffer

int64_t partitionIndex

[-] partition index in the selected storage unit

double availableBits

[bit] available bits in selected unit/partition
